Arrma Fireteam 6s LED Light Kit

Light up the night!!  Add an LED light bar and amber LED pod lights to the front of your Fireteam with a simple bolt-on solution.  Plug-and-play to the factory receiver and mounts securely to the roll cage for added protection.

Included with Light Mount Kit:

- PA6CF dual light mounts with brass threaded inserts compatible with the LED light bar and pod lights

- ALL Stainless mounting hardware + zip ties + stickers

**Losi Lasernut U4 lights and harnesses are not included in this kit**

Included with Full Light Kit:

- PA6CF dual light mounts with brass threaded inserts compatible with the LED light bar and pod lights

- LED full width light bar

- (2) Amber LED pod lights

- 3-1 harness adapter

- 1-1 harness extension

- Wire loom

- ALL Stainless mounting hardware + zip ties + stickers

Installation:

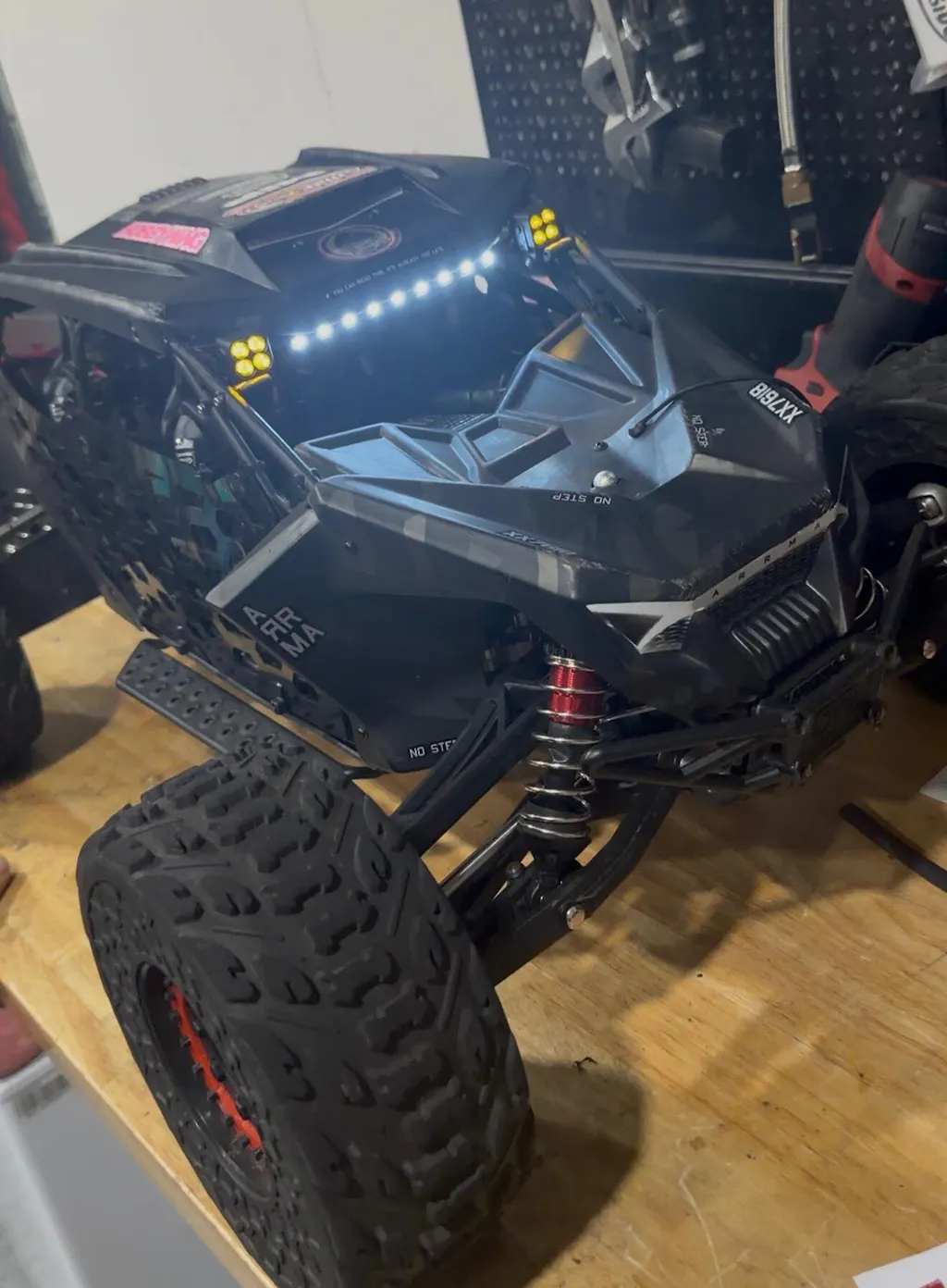

• Install the LED pod lights to the brackets as shown using (1) M3x16 SS bolt per light; lights are left/right hand - have the bolt head face outward for easiest access - lights may be installed HIGH or LOW, see images
• Install the LED light bar to the bracket using (2) M3x12 SS bolts; the mount has a matching hex pattern to align the light straight ahead
• Install the light assembly onto the roll cage using (4) M2x14 SS bolts
• Zip tie the passenger side bundle of wires to the upper roll cage
• Slide the wire loom over the exposed wiring on the driver side
• Push the 3-1 male plug into the opening of the body near the driver's left hand
• Zip tie the wire loom at the top and bottom of the roll cage
• Open the receiver case and plug the extension harness into the BAT open terminal on the receiver; route the wire through the gasket and reinstall the cover
• Bundle the remaining wire and zip tie to the battery case leaving a section loose
• Set the body next to the chassis, plug in the light pigtail to the extension harness and power on the truck
• Grab your sunglasses, these are bright!!
